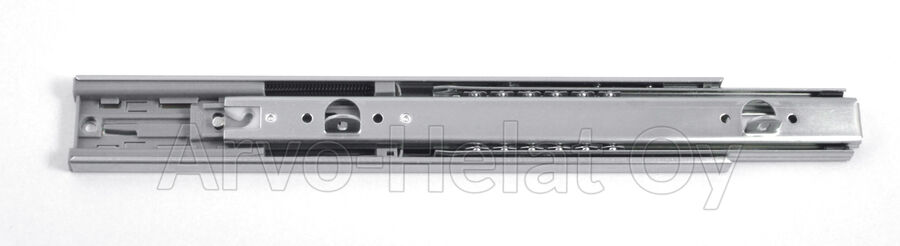

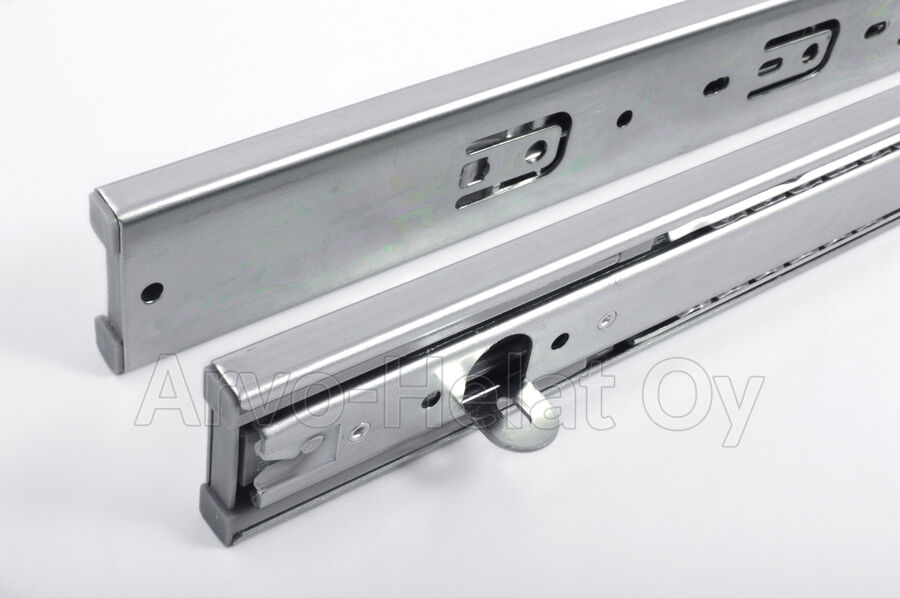

45 mm Soft-telescopic slide, bottom mounted, pair
Technical information
- 3 parts, bottom mounted
- soft-closing-mechanism and disassembly latch
- height 45 mm; thickness 12,7 mm
- Load capacity 30kg/pair (vertical mounting, static load)
| Length | Opening movement |
Code |
|---|---|---|
| 300 mm | 260 mm | 457520 |
| 350 mm | 330 mm | 457525 |
| 400 mm | 400 mm | 457530 |
| 450 mm | 450 mm | 457535 |
| 500 mm | 500 mm | 457540 |
| 550 mm | 550 mm | 457545 |
| 600 mm | 600 mm | 457550 |
| 700 mm | 700 mm | 457560 |
Prices per pair
Fixing into frame with these euro screws:
- 6,3 x 9 mm [557899]
- 6,3 x 10,5 [557900]
- 6,3 x 14,5 mm [557907]
or wood screws
- 3,5 x 15 flat screw [363415]
Fixing into drawer with:
- 4,2 x 9,5 mm [557819]
or wood screws
- 3,5 x 15 flat screw [363415]
Delivery time 1-3 working days for products in stock (in Finland)
Options:| Name | Stock | Place order |
| - 300 mm [457520], pair |  | |
| - 350 mm [457525], pair | | |
| - 400 mm [457530], pair | | |
| - 450 mm [457535], pair | | |
| - 500 mm [457540], pair | | |
| - 550 mm [457545], pair | | |
| - 600 mm [457550], pair | | |
| - 700 mm [457560], pair | |
