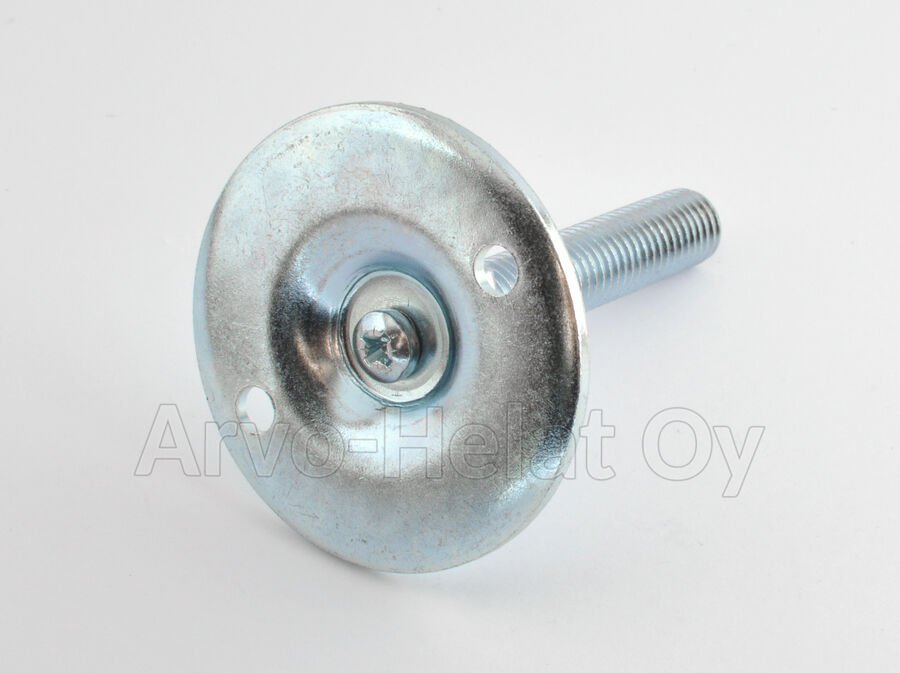

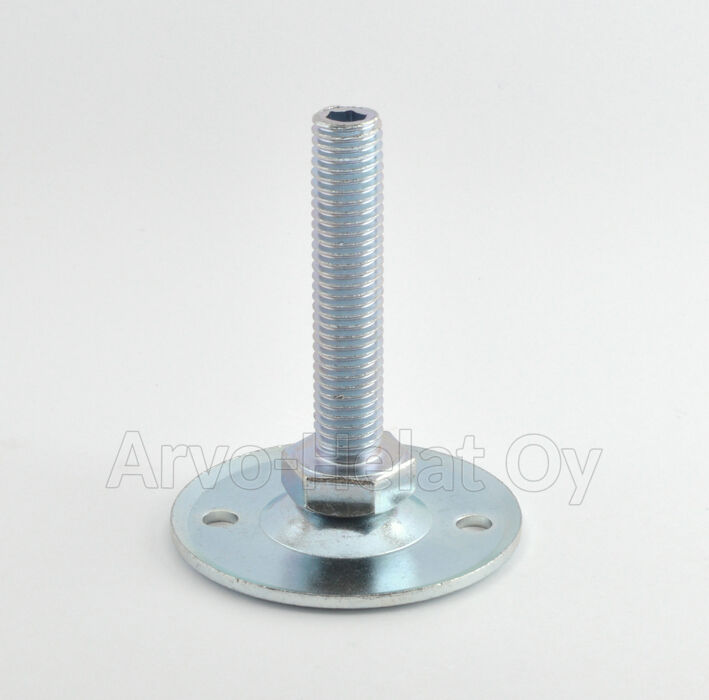

Adjustable Screw Art. 806

Technical specifications

tilted riveting
raises the furniture 13 mm
material: zinc-plated steel

base plate Ø 50 mm, thickness 2 mm
holes Ø 5 mm, hole spacing 36 mm

with M10x50 thread
- without adjustment [468775]
- with adjustment from screw top (SW5) [468776]

with M12x50 thread
- without adjustment [468785]

with M10x100 thread
- with adjustment from screw top (SW5) [468778]

with M12x100 thread
- ilman kuusiokoloa [468787]

base plate Ø 60 mm, thickness 2 mm
holes Ø 5 mm, hole spacing 46 mm

with M10x100 thread
- ilman kuusiokoloa [468782]

Delivery time 1-3 working days for products in stock (in Finland)

Options:

Name	Stock	Place order
- Ø 50 / M10x50 mm, without adjustment [468775]		pcs
- Ø 50 / M10x50 mm, with adjustment from screw top (SW5) [468776]		pcs
- Ø 50 / M12x50 mm, without adjustment [468785]		pcs
- Ø 50 / M10x100 mm, with adjustment from screw top (SW5) [468778]		pcs
- Ø 50 / M12x100 mm, without adjustment [468787]		pcs
- Ø 60 / M10x100 mm, without adjustment [468782]		pcs
