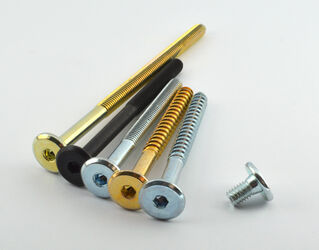

Connecting screw

Length of the screw is measured under the head
Head Ø 15x2,5 mm
4 mm hexagon hole
Available with two thread options

Ø 6,3 mm thread

6,3x50 mm, zinc plated [558005]
6,3x50 mm, yellow zinc plated [363422]
6,3x70 mm, zinc plated [558007]
6,3x70 mm, yellow zinc plated [363421]
6,3x90 mm, zinc plated [558009]
6,3x100 mm, zinc plated [558010]

M6 thread

M6x10 mm, zinc plated [557935]
M6x12 mm, black [558021]
M6x16 mm, zinc plated [557937]
M6x16 mm, black zinc plated [558023]
M6x18 mm, black zinc plated [558024]
M6x20 mm, zinc plated [557938]
M6x20 mm, black zinc plated [558025]
M6x25 mm, keltasinkitty [557842]
M6x30 mm, zinc plated [557940]
M6x30 mm, black zinc plated [558027]
M6x35 mm, zinc plated [557941]
M6x35 mm, yellow zinc plated [557841]
M6x40 mm, zinc plated [557942]
M6x40 mm, black zinc plated [558029]
M6x45 mm, zinc plated [557943]
M6x50 mm, zinc plated [557944]
M6x50 mm, yellow zinc plated [557845]
M6x50 mm, black zinc plated [558031]
M6x60 mm, yellow zinc plated [557838]
M6x60 mm, zinc plated [557946]
M6x65 mm, yellow zinc plated [557837]
M6x65 mm, zinc plated [557947]
M6x70 mm, zinc plated [557948]
M6x70 mm, yellow zinc plated [557843]
M6x70 mm, black zinc plated [558034]
M6x80 mm, yellow zinc plated [557836]
M6x80 mm, zinc plated [557950]
M6x80 mm, black zinc plated [558035]
M6x90 mm, zinc plated [557952]
M6x90 mm, yellow zinc plated [557844]
M6x100 mm, zinc plated [557953]
M6x110 mm, yellow zinc plated [557968]
M6x110 mm, brass plated [557969]
M6x120 mm, yellow zinc plated [557971]

Cover cap for connecting screw [493329]
-white
-Ø17 mm
-height 4,5 mm
