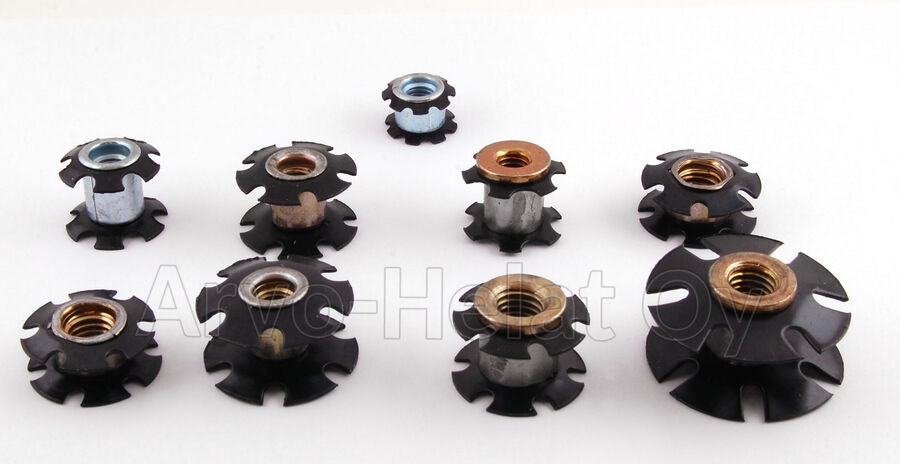

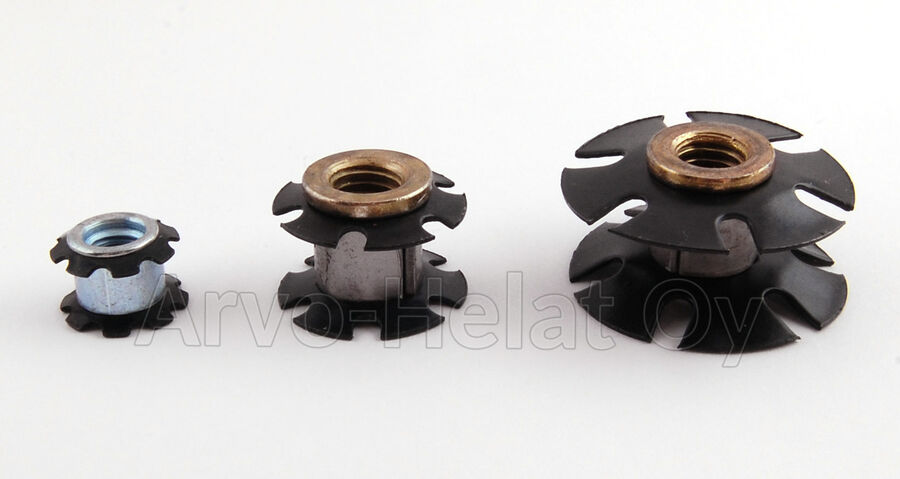

Threaded tube joint
A right insert can be chosen when outer dimesions and wall thickness has been measured.
|
TUBES |
THREAD |
HEIGHT |
Code |
EXTRA INFO |
|---|---|---|---|---|
| 16 | M6 | 9 | 580122 | Discontinued |
| 19 | M6 | 9 | 580129 | Discontinued |
| 19 | M6 | 10 | 491715 | |
| 22 | M6 | 13,3 | 420820 | Discontinued |
| 22 | M8 | 10 | 493717 | |
| 25 | M6 | 14,2 | 580141 | Discontinued |
| 32 | M8 | 16,2 | 580171 | Discontinued |
Options:| Name | Stock | Place order |
| - Ø 16 / M6 [580122] | ||
| - Ø 19 / M6 [580129] | ||
| - Ø 19 / M6 [493715] | ||
| - Ø 22 / M6 [420820] | ||
| - Ø 22 / M8 [493717] | ||
| - Ø 25 / M6 [580141] | ||
| - Ø 32 / M8 [580171] |
