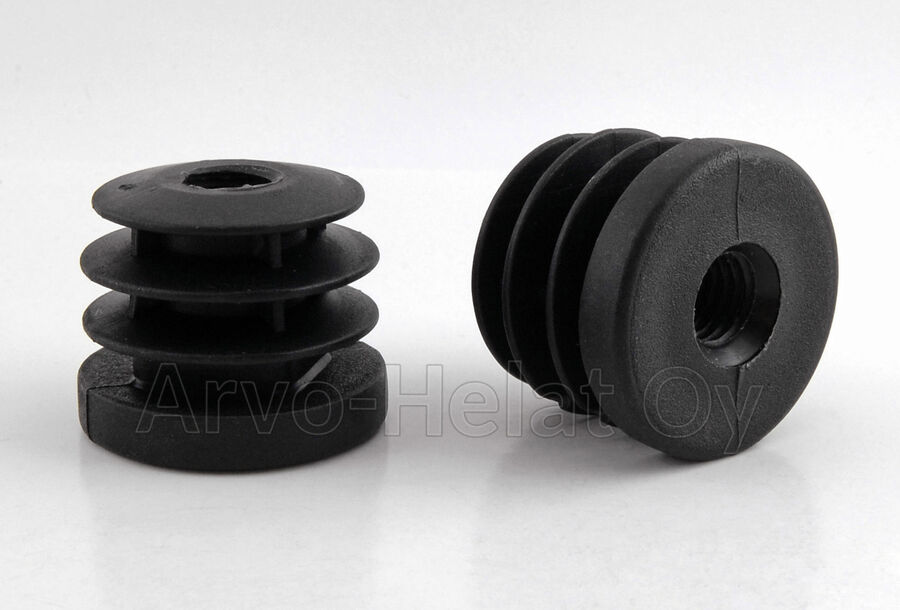

IRAF threaded Insert for round tube, black
A right insert can be chosen when outer dimesions and wall thickness has been measured.
plastic threads
| Type | Tube outer dia/ thread |
Wall |
Base |
Total |
Code |
|---|---|---|---|---|---|
| IRAF | Ø 22 / M8 | 1-1,5 mm | 6 mm | 25 mm | 393000 |
| IRAF | Ø 22 / M10 | 1-1,5 | 6 | 25 | 393010 |
| IRAF | Ø 25 / M8 | 1-1,5 | 6 | 25 | 393020 |
| IRAF | Ø 25 / M10 | 1-1,5 | 6 | 25 | 393030 |
| IRAF | Ø 28 / M8 | 1-1,5 | 6 | 25 | 393040 |
| IRAF | Ø 28 / M10 | 1-1,5 | 6 | 25 | 393050 |
| IRAF | Ø 30 / M8 | 1-1,5 | 6 | 25 | 393060 |
| IRAF | Ø 30 / M10 | 1-1,5 | 6 | 25 | 393070 |
| IRAF | Ø 32 / M8 | 1-1,5 | 6 | 25 | 393080 |
| IRAF | Ø 32 / M10 | 1-1,5 | 6 | 25 | 393090 |
| RG | Ø 35 / M8 | 1-2 | 5 | 31 | 393105 |
| IRAF | Ø 35 / M8 | 1-1,5 | 6 | 26 | 393100 |
| IRAF | Ø 35 / M10 | 1-1,5 | 6 | 26 | 393110 |
| IRAF | Ø 40 / M8 | 1-1,5 | 6 | 26 | 393120 |
| IRAF | Ø40/M10 | 1-1,5 | 6 | 26 | 393125 |
| IRAF | Ø45/M10 | 1-1,5 | 6 | 29 | 393140 |
| IRAF | Ø50/M8 | 1-2 | 6 | 27 | 393145 |
| IRAF | Ø50/M10 | 1,5-2 | 6 | 27 | 393150 |
| IRAF | Ø60/M10 | 1,5-2 | 7 | 32 | 393155 |
Delivery time 1-3 working days for products in stock (in Finland)
Options:| Name | Stock | Place order |
| - IRAF Ø 22 / M8 [393000] |  | |
| - IRAF Ø 22 / M10 [393010] | | |
| - IRAF Ø 25 / M8 [393020] | | |
| - IRAF Ø 25 / M10 [393030] | | |
| - IRAF Ø 28 / M8 [393040] | | |
| - IRAF Ø 28 / M10 [393050] | | |
| - IRAF Ø 30 / M8 [393060] | | |
| - IRAF Ø 30 / M10 [393070] | | |
| - IRAF Ø 32 / M8 [393080] | | |
| - IRAF Ø 32 / M10 [393090] | | |
| - RG Ø 35 / M8 [393105] | | |
| - IRAF Ø 35 / M8 [393100] | | |
| - IRAF Ø 35 / M10 [393110] | | |
| - IRAF Ø 40 / M8 [393120] | | |
| - IRAF Ø 40 / M10 [393125] | | |
| - IRAF Ø 45 / M10 [393140] | | |
| - IRAF Ø 50 / M8 [393145] | | |
| - IRAF Ø 50 / M10 [393150] | | |
| - IRAF Ø 60 / M10 [393155] | |
